How To Install Magnetic Mesh Screen Door: Easy Step-By-Step

Attach the mesh, align the magnets, peel the tape, and press firmly for a snug hands‑free fit.

I’ve installed dozens of mesh doors and tested methods that save time and avoid damage. This guide explains how to install magnetic mesh screen door step by step, with clear tools lists, measurements, troubleshooting tips, and real-world advice. Read on to get a durable, insect-proof, hands-free screen that fits your door and stays put.

Tools and Materials you’ll need

Use a short list to gather everything before you start. Being ready saves time.

• Magnetic mesh screen door kit (measure your doorway first).
• Power drill with screwdriver bits or a manual screwdriver for tight spots.
• Tape measure and pencil.
• Level or straightedge to keep the mesh even.
• Clean cloth and rubbing alcohol for surface prep.
• Masking tape or clamps to hold the mesh while you adjust.
• Optional: Velcro strips, tacks, or small screws if the kit needs reinforcement.

Why these items matter: the right kit and simple tools make how to install magnetic mesh screen door quick and neat. I always keep extra adhesive or Velcro on hand for older frames.

Preparations and measurements before you install

Take accurate measurements. Small errors cause gaps and drafts.

• Measure door height and width in three spots: top, middle, and bottom.
• Choose a kit that matches or exceeds the widest and tallest measurements.
• Clean the door frame area thoroughly with rubbing alcohol. Old dirt weakens tape.
• Test-fit the mesh against the frame to confirm coverage and overlap.
• Mark the top center and sides lightly with a pencil for alignment.

Pro tip from my installs: round up by one inch when choosing a kit for heavy foot traffic doors. This prevents gaps when the frame shifts over time.

Step-by-step: how to install magnetic mesh screen door

Follow these steps in order. Each step is short and simple.

1. Unpack and lay out parts

   • Remove packaging and separate magnets, fasteners, and the mesh.
   • Check that magnets align and that there are no defects.

2. Attach top strip first

   • Position the top strip centered on the frame. Use a level.
   • Peel the adhesive backing a few inches and press the center into place.
   • Work outward, peeling and pressing the tape firmly.

3. Secure the side strips

   • Align one side strip with the taped top edge. Press in place.
   • Repeat on the other side. Keep the mesh taut but not stretched.

4. Hang the mesh panel

   • Hook or press the mesh onto the attached strips.
   • If the kit uses Velcro, press both sides to bond. If it uses magnets sewn into the seam, check magnet spacing.

5. Fasten bottom and corners

   • Attach the bottom strip or use tacks/screws on the corners for extra strength.
   • Trim any excess mesh with scissors if necessary, leaving at least one inch of overlap.

6. Test the magnetic seal

   • Walk through slowly to test the self-closing magnet action.
   • Inspect for gaps at the sides and bottom.

7. Reinforce if needed

   • For heavy use doors, add small screws or extra Velcro at stress points.
   • Use a dab of clear adhesive on corners if tape tends to peel.

I learned to always press adhesive strips for 30 seconds and wait 24 hours before heavy use. This helps the tape fully bond and reduces sagging.

Tips, personal experience, and mistakes to avoid

Real installs taught me what works and what to skip.

• Mistake: Rushing surface prep. Dirty frames cause failure. Clean first.
• Tip: If the frame is uneven, use thin weatherstrip foam under the tape to create a flat plane.
• Mistake: Cutting mesh too short. Always cut less than expected; you can trim later.
• Tip: Use clamps or masking tape while aligning the top strip to keep it steady.
• Personal note: On a rental property, I used no-drill Velcro and removed it cleanly with a hairdryer to soften the adhesive.

These small choices make how to install magnetic mesh screen door last longer and look better.

Common issues and troubleshooting

If something goes wrong, try these fixes.

• Mesh not closing fully
  • Check magnet alignment. Reseat side strips so magnets meet squarely.
• Tape peeling after weeks
  • Clean surface and replace adhesive with stronger tape or add screws.
• Mesh flaps catching on the floor
  • Trim the bottom or add a small weight bar sewn into the hem.
• Gaps in windy conditions
  • Add extra Velcro strips down the sides or use heavier-duty magnetic kits.

When I had a windy porch, adding a small row of sewing magnets solved repeated gaps without changing the whole setup.

Maintenance and seasonal care

Keep the door working and clean with simple upkeep.

• Shake or vacuum the mesh monthly to remove dust and pollen.
• Hand-wash the mesh with mild soap if it gets stained. Air dry before reattaching.
• Check adhesive strips each season; reapply or replace if they lose tack.
• Remove the mesh in winter if you expect heavy snow or to prevent freeze damage.

Simple care extends life and saves money replacing kits every year.

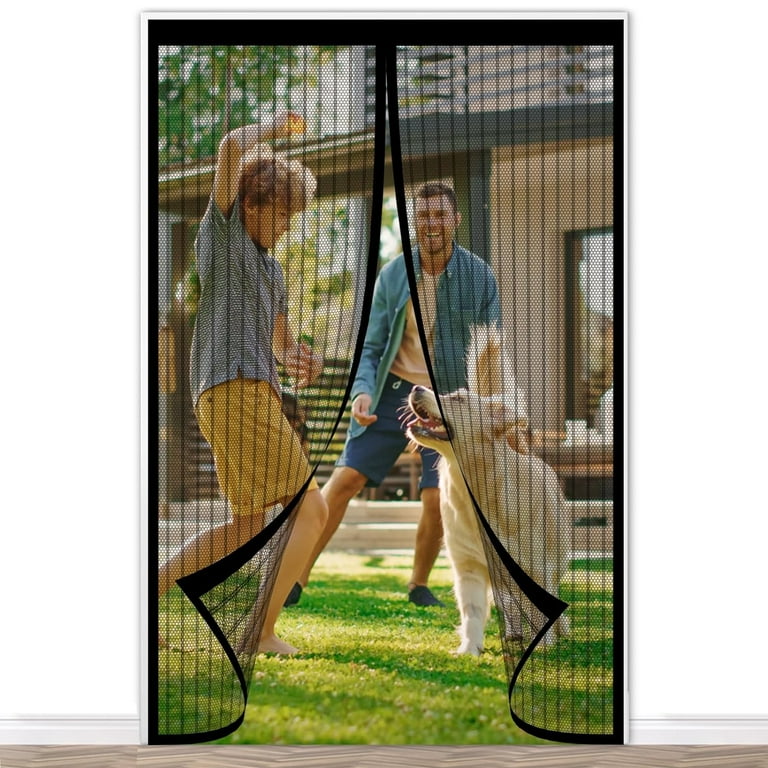

Benefits and limitations of magnetic mesh screen doors

Know what this solution can and cannot do.

Benefits

• Keeps insects out while allowing hands-free entry.
• Affordable and quick to install without professional help.
• Portable and easy to remove when needed.

Limitations

• Adhesive can fail on rough or painted surfaces.
• Not a full security barrier; it won’t stop forced entry.
• High winds or heavy pets may require reinforcement.

Understanding these trade-offs helps you decide if this is the right upgrade for your door.

Quick questions people ask (PAA-style)

What is the best height for a magnetic mesh screen door?

• Most kits fit standard doors up to about 80 inches. Measure your doorway and choose a kit equal to or slightly larger than the tallest point.

Can I install one without tools?

• Yes. Many kits use adhesive Velcro strips and peel-and-stick tape that require no drilling. Tools help with tighter fits and reinforcement.

Will the magnets keep bugs out completely?

• When installed correctly with a snug seal, magnets close quickly and block most flying insects. Very small gaps can still let tiny bugs through.

Can I use a magnetic mesh screen door on sliding doors?

• Most kits are designed for swinging doors but you can find versions for sliding doors or use Velcro-mounted mesh panels adapted for sliders.

How long does installation take?

• Expect 20 to 45 minutes for most DIY installs. Proper cleaning and alignment take the most time.

Frequently Asked Questions of how to install magnetic mesh screen door

How do I measure my door for a magnetic mesh screen door?

Measure height and width at three points. Use the largest measurement to choose a kit that fully covers the opening.

Can I install a magnetic mesh screen door on a metal frame?

Yes. Clean the metal surface well. Use strong adhesive tape rated for metal or small screws where allowed.

How do I keep the mesh from sagging over time?

Press adhesive firmly during install and reinforce the top with extra Velcro or screws. Allow 24 hours for the tape to cure before heavy use.

Is it safe to leave the magnetic mesh screen door up all year?

Generally yes, but remove it in extreme weather or during long storage to prevent wear or adhesive failure.

Can kids and pets use a magnetic mesh screen door easily?

Most can. Choose a heavy-duty kit for pets and test magnet strength to ensure easy passage and reliable closure.

Conclusion

You now have a clear, practical plan for how to install magnetic mesh screen door. Measure well, prep the frame, align magnets carefully, and reinforce high-traffic points. With simple tools and a few tips from real installs, you can have a clean, hands-free screen that keeps bugs out and makes life easier. Try the steps on your next weekend project, share your results, and consider subscribing or leaving a comment if you found these tips useful.
